Connecting your camera to a Wi-Fi Network via Vault

Guide on how to add a WiFi network to your body camera using a QR Code in Vault

If you entered your Wi-Fi details during the order process:

• Your camera is already pre-configured. Once powered on, it will automatically connect to the provided network.

• No additional steps are needed unless your network settings have changed.

If pre-configuration or WPS is not available or you need to update it, you can manually configure your camera using Vault.

To configure your body camera's Wi-Fi network via Vault:

1. Log into your account via the HALOS Vault login page:
   • Europe/UK Login: app.halovault.cam
   • US Login: app.halovault.us

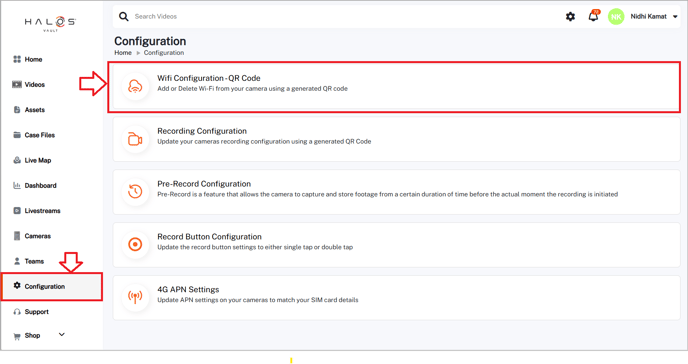

2. Navigate to the Configuration section from the sidebar menu where you will see Wi-Fi Configuration - QR Code. Select this option - this will open a new page with additional instructions on how to set up the QR scanner on the camera

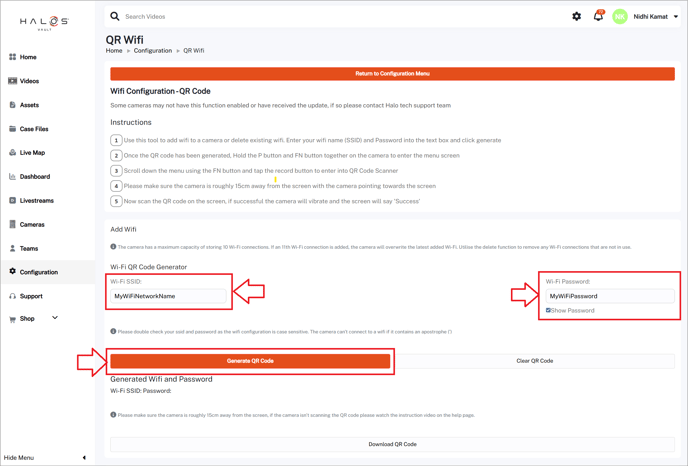

3. Enter the Wi-Fi name (SSID) and Password into the text boxes. Please ensure this is an exact case match.

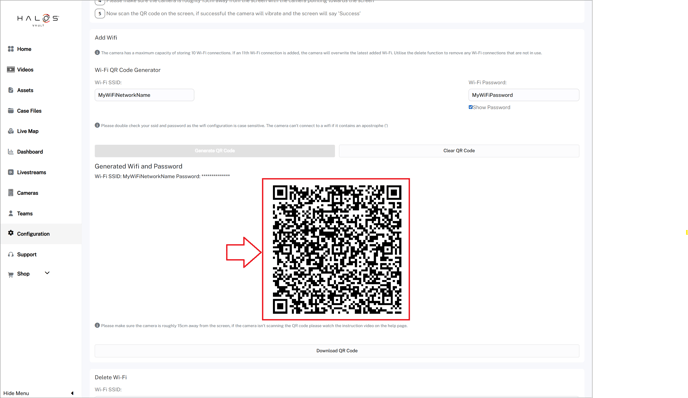

4. Click Generate QR Code which will show a QR code under this section if successfully created. You will have the option to either scan the QR code on this page or download it as a PNG file.


5. To scan the QR code, you will need to enter the scanner settings on the camera you would like to configure:
   1. Hold the P + FN button together to enter the menu screen
   2. Scroll down the menu using the FN button and select the QR Code Scanner option by pressing the front record button
6. Point your camera at the QR code, ensuring it is roughly 15cm away from the screen
7. If your camera has successfully scanned the QR code, it will vibrate and a Success status will appear on the screen. You camera should now connect to the new Wi-Fi network when in range.
